Haemophilia (Bsh 2011/2012/2013/2020, rcog 2017, UKHCDO)

Deficiency severities for FVIII, IX, X & II

haem 1.png

Intro



FVIII produced in the liver, spleen, and lymph nodes (+ some endothelial cells, e.g. lung – provides the desmopressin-releasable FVIII pool)



FVIII and FIX form the tenase complex, w/out this there is a failure to produce the thrombin burst



Failure of thrombin burst:

--> only a loose, friable fibrin mesh is produced, which is easily dislodged leading to rebleeding

--> failure to activate thrombin-activatable fibrinolysis inhibitor (TAFI) --> increased fibrinolysis



End result is the failure to consolidate the primary platelet plug, leading to the characteristic delayed bleeding seen in haemophilia.



Why joint bleeds in particular? Theory is low expression of tissue factor in synovial tissue.

Potted History



2nd century Talmudic scripts – “It was taught: If she circumcised her first son and he died, and her second son and he too died, she should not circumcise her third son, so taught Rebbi.”

1904 - Alexei Nikolaevich– haemophiliac – son of Nicholas II of Russia. Taken to Rasputin for treatment

1937 – FVIII identified

1984 – virally inactivated pooled plasma concentrates

1993 – recombinant FVIII licensed

1994 – No. 1 cause of death for haemophiliacs in UK – AIDS, 73 cases

2000’s – B-domain depleted FVIII

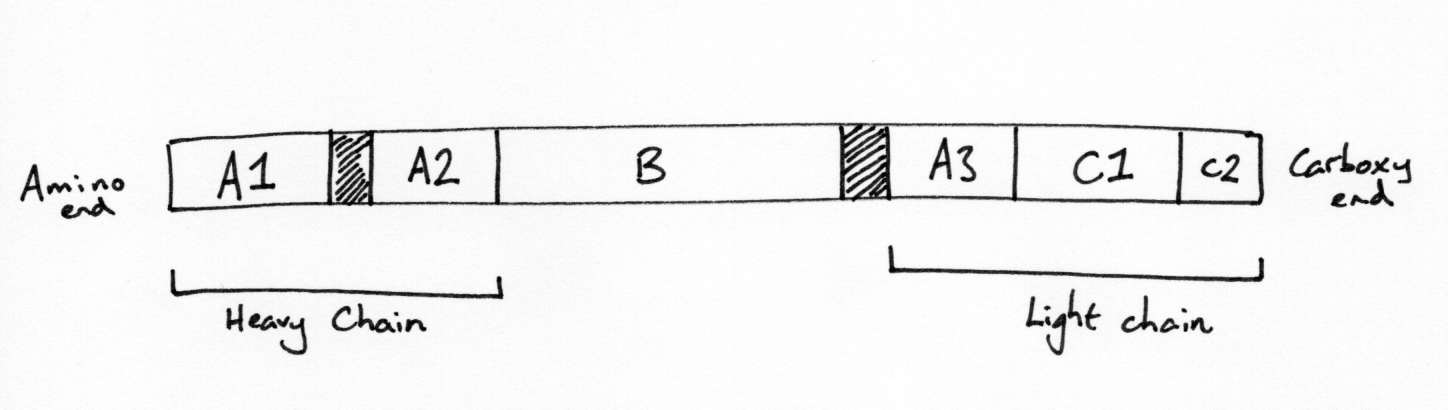

factor viii protein



Triplicated A1, A2, A3 domains which are 30% homologous to one another

B domain connects A2 and A3 and is removed when thrombin activates FVIII

Duplicated C1, C2 domains responsible for phospholipid binding properties



FVIII circulates as light and heavy chains with B domains of varying length

>90% circulates complexed to VWF, prolonging its half-life

factor 8.png

genetics



FVIII gene is 187kb in size, found on the long arm of the X chromosome

The 26 exons are separated by multiple large introns

30% of cases are due to sporadic mutations. 5% of cases do not have an identifiable mutation.



Intron 22 Inversion – “Flip-Tip Inversion”



Intron 22 is a large 35 kb intron, responsible for 50% of severe haemophilia A

The X pairs with the Y during meiosis, leaving nothing for the long arm of X to pair with.

Due to similarities between three F8A genes, the tip of X can flip up and bind with itself.

Results in two abnormal A genes both of which fail to produce FVIII when transcribed.

flip tip.png

 haemophilia a Treatment

factor dosing

Factor concentrates raise factor level by 0.02 iu/ml for every iu/Kg infused

FVIII Expected dose = (% Increment required (i.e. iu/dL) x Weight (Kg)) / 2



Half-life 8-12 hours

Round up to whole vial, do not waste concentrate

Repeat doses at 12 and 24 hour intervals if required

haem 4.png

Recombinant Factor Concentrates



1st Generation

  • No longer in use in UK. Human albumin in concentrate as stabiliser



2nd Generation

  • Refacto-AF, Kogenate, Helixate NexGen

  • Contain human albumin in cell culture medium

  • Refacto-AF is a B-domain deleted FVIII, which requires a specific assay to measure levels



3rd Generation

  • Advate

  • No animal products

Desmopressin

haem 5.png

SE: Flushing, hypotension, fluid retention, hyponatraemia, aterial occlusion



Safe use:

Fluid restrict to 1L in 24 hours after dose

Monitor Na if <2 y.o.

Avoid use if atherosclerosis



Prophylaxis - principles (BSH 2020)



Primary Prophylaxis - All children with with baseline level of <0.03iu/ml (i.e. all severe, and some moderate). Start before, or immediately after, 1st joint bleed or before 2yrs old. Aim is to preserve normal joint function. Life-long treatment should be the standard of care.

Secondary Prophylaxis - Starts after 2+ joint bleeds but before proven joint disease. Aims to limit consequence of any subclinical joint damage that has already occurred and maximize long-term function.

Tertiary Prophylaxis - Starts after onset of clinical/radiological joint disease and aims to slow down progression of diease and maintain quality of life.

Pros

  • Prevent acute, painful bleeds

  • Prevent chronic joint damage

  • Reduce frequency of intracranial haemorrhage (in severe haemophilia w/out inhibitors)

  • Reduce time off school / work

  • Wider range of activities to participate in



Cons

  • Venous access / Portacath

  • Inhibitor formation

  • Infection risks



How to Start

  • 20-40 iu/kg on alternate days

  • Aiming for a trough level >0.01 iu/ml

  • FVIII half-life 8-12 hours, dosing schedule can be tailored to individual’s pharmacokinetics (see guideline)

  • Psychosocial needs of child and family need to be addressed and supported

  • Route of administration (periph / portacath / external CVAD) should be agreed with parent / guardian

Phases of treatment:

  1. Initial introduction in first 3 years of life

  2. Establish regular dosing through childhood

  3. Modify dose for increased activity in teenage years

  4. Modify dose for reduced activity in adulthood

  5. 30% of severe patients can safely stop prophylaxis in adulthood

Example Evidence for Use of Prophylaxis

  • ESPIRIT Trial 2009 – Arthropathy in 30% of treated, 74% of untreated patients

  • SPINART Trial 2013 - RCT comparing tertiary prophlyaxis vs on-demand treatment —> prophylaxis reduced bleeding (by 94%) and chronic pain (by 54%).

Joint Bleeds



Definitions

  • Early bleed: fullness, stiffness, tingling in joint with no trauma. Full range of motion.

  • Moderate: Pain with some swelling and restriction of movement

  • Severe: Severe pain with an immobilized joint

  • -Re-bleed: worsening symptoms whilst on treatment or within 72 hours of stopping

Initial Treatment

  • Aim for peak level of 0.5-0.6 in moderate bleeds, 0.6-0.8 in severe bleeds

  • FVIII Approx 25-30 IU/kg

  • FIX Approx 40-60 IU/Kg

  • Doses may need to be repeated in response to ongoing symptoms

Treatment for bleeds in inhibitor patients

  • Patient knows best, differing preferences for FEIBA or rFVIIa

  • FEIBA approx. 50-100 IU/Kg every 12 to 24 hours (Max 200 IU/kg in 24 hours)

  • rVIIa approx.. 270 microg/Kg as single dose (instead of prev 90 x3)

Additional measures

  • Protection, Rest, Ice, Compression, Elevation

  • Analgesia

  • TXA – prev concern over prothrombotic in combo with concentrate not substantiated

Target Joints and Synovitis

  • Chronic synovitis results from recurrent bleeding into joints à chronic painless swelling.

  • Target joint = 3 or more bleeds into a single joint in a 6 month period

  • Treatment:

    • Radioactive synovectomy

    • Selective angiographic embolization

    • Intra-articular steroid injection

    • Surgery



 Dental Procedures



For mild and moderate haemophilia most non-surgical dental work can be done with TXA.



Severe haemophilia

  • Screen for inhibitors before any invasive procedures

  • Local infiltration of gum – 30% rise

  • Inferior nerve block – 50-80% rise, then 50% the following day

  • Dental extraction – 50-80% rise, then 50% the following day



Extended Half-Life (EHL) Products



Engineered to prolong half-life of the factor concentrate in vivo. The native clotting factor glycoprotein can be modified in one of three ways:

  • Addition of polyethylene glycol (PEG), e.g. Bax855, Bay 94-9027, N8-GP / N9-GP

  • Fusion to recombinant human albumin, e.g. rFIX-FP

  • Fusion to Fc-region of human IgG, e.g. rFVIIIFc / rFIXFc



How/When to start?

  • Consider switch to EHL in severe haemophilia pts after first 50 doses of standard product

    • To avoid the highest risk period for inhibitor development

  • Test for inhibitor prior to start, after 10 doses, after 3 months and then 6 monthly

  • Perform a pharmacokinetic study to individualise the dosing.

    • E.g. for FVIII, levels pre-dose, 15 min, 6/24/48 & 72 hours post dose

  • Prophylaxis strategies

    • Less frequent infusions (e.g. twice weekly for FVIII) to reduce no. of venepunctures

    • Infusions at traditional frequencies (e.g. alt days FVIII) to increase trough level

    • Hybrid regimens improve troughs and reduce frequencies



Dosing EHL’s

  • EHL-FVIII half-life increased 1.5-fold (EHL-FIX 3-5 fold) compared to standard products

  • This is an average for adults and adolescents, with wide variability.

    • Therefore dosing schedules must be individualized

  • Variability even greater in children, and not been studied in pts with a history of inhibitors



Monitoring EHL’s

  • FVIII – Chromogenic assay

  • FIX – One stage assay

  • APTT assays give variable results and careful choice of reagent required



Treating bleeds on EHL’s

  • Treatment dose should be based on time since last dose, & patient’s known incremental recovery (IR).

  • A single infusion should be effective for most bleeds

Newer EHL Products

  • FVIII + Antibody fragment + VWF fragment. The VWF fragment protects the FVIII extending the half-life

  • May be able to dose once a week or even less frequently



emicizumab

Recombinant Bi-specific antibody - bridges activated FIX to FX, replacing the function of the deficient aFVIII

Dosing - 3 loading doses, followed by fortnightly administration (monthly dosing being investigated (2022)).

Benefits - Reduces bleeds, Improves Quality of Life, Bypasses Inhibitors

Testing FVIII levels on treatment - Use chromogenic assay with bovine reagents (human reagents provide a substrate for the drug —> erroneous results)

Treating bleeds in inhibitor patients on emicizumab - Use NovoSeven. High doses of aPCC’s should be avoided due to association with inducing thrombosis and MAHA.

SE - reported cases of MAHA when co-administered with activated promthrombin complex concentrate (aPCC, e.g. FEIBA)

Currently (2022) available in UK for:

  • As prophylaxis for all severe haemophila A

  • As prophylaxis in any severity of haemophilia A where inhibitors are present

Trials

Gene Therapy



Current process (2022)

  • Given as a single IV infusion, usually AAV vector, followed by close monitoring for transaminitis.

  • Intent is to increase the expression of FVIII or FIX in order to change the bleeding phenotpye.

  • Does not alter the genetic defect or inheritance.

For more, see EMJ Congres 2022 of gene therapy

AAV5-Factor Gene Transfer in severe haemophilia A – S. Rangarajan – NEJM 2017

  • 9 men with severe haemophilia A

  • 1 low dose, 1 intermediate dose, 7 high dose

  • After one year, High dose group = FVIII:C >0.05iu/ml in all patients, >0.50 iu/ml in 6 of them

  • Annualised bleeding rate fell, all patients stopped using concentrate by week 22

  • SE: Transient ALT rise

‘re-balancing’

Fitusiran - AT3 siRNA targeting antithrombin

Aims to restore thrombin generation by suppressing antithrombin —> ‘Re-balancing’ levels

SE: Two thrombotic events so far, one death (Sept 2019)

tissue factor pathway inhibitors

Concizumab - Early days. Some efficacy data at ISTH 2019

Some trial products withdrawn due to thrombotic side effects.

Comprehensive Care Centre (CCC) Annual Review



Review of treatment episodes – product, dose, venous access, ?prophylaxis indicated



Orthopaedic issues – Review joints, perform joint score, physiotherapist review, offer referral to surgeon / rheumatologist is needed

Health promotion - smoking, alcohol, diet, exercise, blood pressure, bone health, cancer screening



Vaccinations – Hep B titre >100



Social – school occupation, time missed from either, sports, living allowance, travel arrnagements



Review HaemTrack record – online / paper / App



Bloods – FBC, U&E, LFT, Inhibitor screen, Anti-Hbs titre, Trough factor level, Viral screening



Radiology – directed by symptoms

Factor VIII Assays



Reminder: APTT – Plasma + surface activator + phospholipid + Calcium



One Stage Factor Assay

Principle:

  1. Perform APTT’s on serial dilutions of standard reference plasma (diluted using factor deficient plasma) and plot the results to create a best fit line.

  2. Then perform APTT’s on serial dilutions of the patient’s plasma

  3. This should produce a best fit line parallel to the reference best fit, from which the patient’s factor level can be read.



Causes of Non-Parallel lines

  • You made a mistake in plotting the lines

  • An inhibitor is present, with increasing dilutions the inhibitor is diluted out

  • You cannot dilute nothing – if the factor level is <1% the clotting times will be grossly prolonged and not change with dilution.



Interference with the 1 stage Assay

  • Antiphospholipid antibodies, recombinant FVIII and pre-activation of FVIII



Chromogenic 2-Stage Assay

Principle:

  1. Patient plasma + reagent cocktail (IXa, X, thrombin, Calcium, phospholipid)

  2. Incubate at 37 degrees to produce Xa

  3. Add chromogenic substance and incubate

  4. Chromogenic substance changes colour when cleaved by Xa —> Calculate Xa concentration, with the FVIII concentration having been the rate limiting step.



Causes of 1-Stage / 2-Stage Discrepancy

  • Normal 1-stage FVIII seen in 10% of mild haemophilia patients —> check chromogenic

  • Low 1-stage but normal chromogenic due to a F8 mutation that does not cause bleeding



Inhibitors



25-30% of severe patients develop inhibitor, but many low level and transient

Most likely to occur in first 25 doses

Inhibitor may have specificity against the exogenous factor or patient’s own factor



Risks for developing inhibitors

  • Mutation: Large deletions or stop codons in the light chain, Intron 22 inversion

  • African / Hispanic

  • Age <6

  • HIV negative

  • Large doses e.g. following severe bleed

  • Adminstering at the same time as an inflammatory stimulus, e.g. surgery

Inhibitor Properties:

  • Immediate acting or Time-dependent (2-4 hours)

  • Type 1 kinetics (linear FVIII inactivation)

  • Low responder antibody – remain at a low level (5-10 BU) after FVIII exposure

  • High responder antibody – sharp anamnestic rise after 5-8 days (100 – 1000’s BU)



1 Bethesda Unit (BU) = amount of antibody required to reduce FVIII activity in pooled normal plasma by 50% after two hours incubation



When to screen:

  • After every 3rd exposure until 20 exposures

  • Then every 3-6 months

  • Initial screen with trough level. If trough <0.01 iu/ml at 48 hours —> APTT Screen



APTT Inhibitor Screen

haem 6.png



Bypassing Agents



Factor Eight Inhibitor Bypassing Agent (FEIBA)

Plasma product containing Prothrombin and Factor Xa (and other factors)

Peak thrombin generation at 15-30minutes. Returns to baseline at 8-12 hours.



Recombinant FVIIa (NovoSeven)

Recombinant. M.O.A thought to be binding to surface of activated platelets at site of injury and promote FXa formation at that site



FVIII Immune Tolerance Induction (ITI)



Administration of FVIII at 50 iu/kg on alt days, increasing to 200 if required

No evidence for which is better dose

Continued for minimum 12 months

May combine with: Rituximab, steroids, alkylating agents, IVIg, plasmapheresis



Success Criteria:

  • FVIII half-life >7 hours and BU negative

  • Or a measurable 48 hour trough whilst on 50 IU/kg on alternate days

70% overall success rate

Factors in favour of a good success are:

  • Age <7, peak BU <200, starting treatment after BU has fallen <5



UKHCDO iti Protocol for children 2017

Start ITI as soon as inhibitor identified, regardless of the titre

CVC insertion if needed to allow uninterrupted infusions



First line ITI should be conducted with patient’s usual product

If <5 BU:

  • Start at 50 IU/kg on alternate days

  • If bleeds, first increase to daily, then increase dose in 50IU/kg increments

  • If titre rises >40 BU, immediately increase dose to 100 IU/Kg daily

  • If titre rises >200 BU, immediately increase dose to 200 IU/Kg daily

If 5-199 BU:

  • Start at 100 IU/kg daily

  • If bleeds, first increase to daily, then increase dose in 50IU/kg increments

  • If titre rises >200 BU, immediately increase dose to 200 IU/Kg daily

If >200 BU:

  • Start at 200 IU/kg daily



Measure inhibitor titre (BU) weekly during start of ITI to define the peak titre

Once peak is defined, check BU monthly

Continue ITI for as long as there is an ongoing downward trend in the titre

If there is an upward trend, or the titre fails to fall by 20% over 6 months, change treatment:

  • If dose <200 IU/kg/day, increase the dose

  • If dose already 200 IU/Kg/day, change to 2nd line therapy (pFVIII +/- Ritux)



Female Haemophilia A



Symptomatic Carriers:

Random process of X chromosome inactivation allows one FVIII allele to function in each cell

On average this will result in carriers having 50% of normal FVIII levels

But random process, so some will have normal levels, others develop mild haemophilia



Causes of True Female Haemophilia A

1. Homozygous haemophilia A (often consanguineous)

2. Compound heterozygosity

3. Turner Syndrome (XO)

4. Translocation through the FVIII locus on the normal X chromosome

5. Complete Androgen Insensitivity – Phenotypically female but genetically XY

6. Extreme lyonisation

       - As a result of mutation in Xist gene (controls methylation of X chromo)



Haemophilia B



Rarer – 1 in 30,000 live male births

Usually missense or nonsense mutations in FIX gene

Essentially the same clinical features, possible slightly less severe

Longer half-life of FIX (18 hours) so less frequent concentrate administration



Inhibitors much less common (2-3%), present with anaphylaxis to concentrate, not time dependent, ITI far less likely to be successful



FIX Expected dose = % Increment required (i.e. iu/dL) x Weight (Kg)



BeneFIX currently the only recombinant concentrate available (as of 2016)



Haemophilia B Leyden

  • 2% of cases. Initially moderate or severe FIX deficiency —> postpuberty normalization

  • Normalisation thought due to androgens increasing F9 gene expression



F9 mutation causing extreme sensitivity to warfarin

  • Normal FIX levels, not a haemophilia disorder

  • But mutation affects the gamma-carboxylation of FIX

  • In the presence of warfarin —> FIX level <1% and bleeding complications

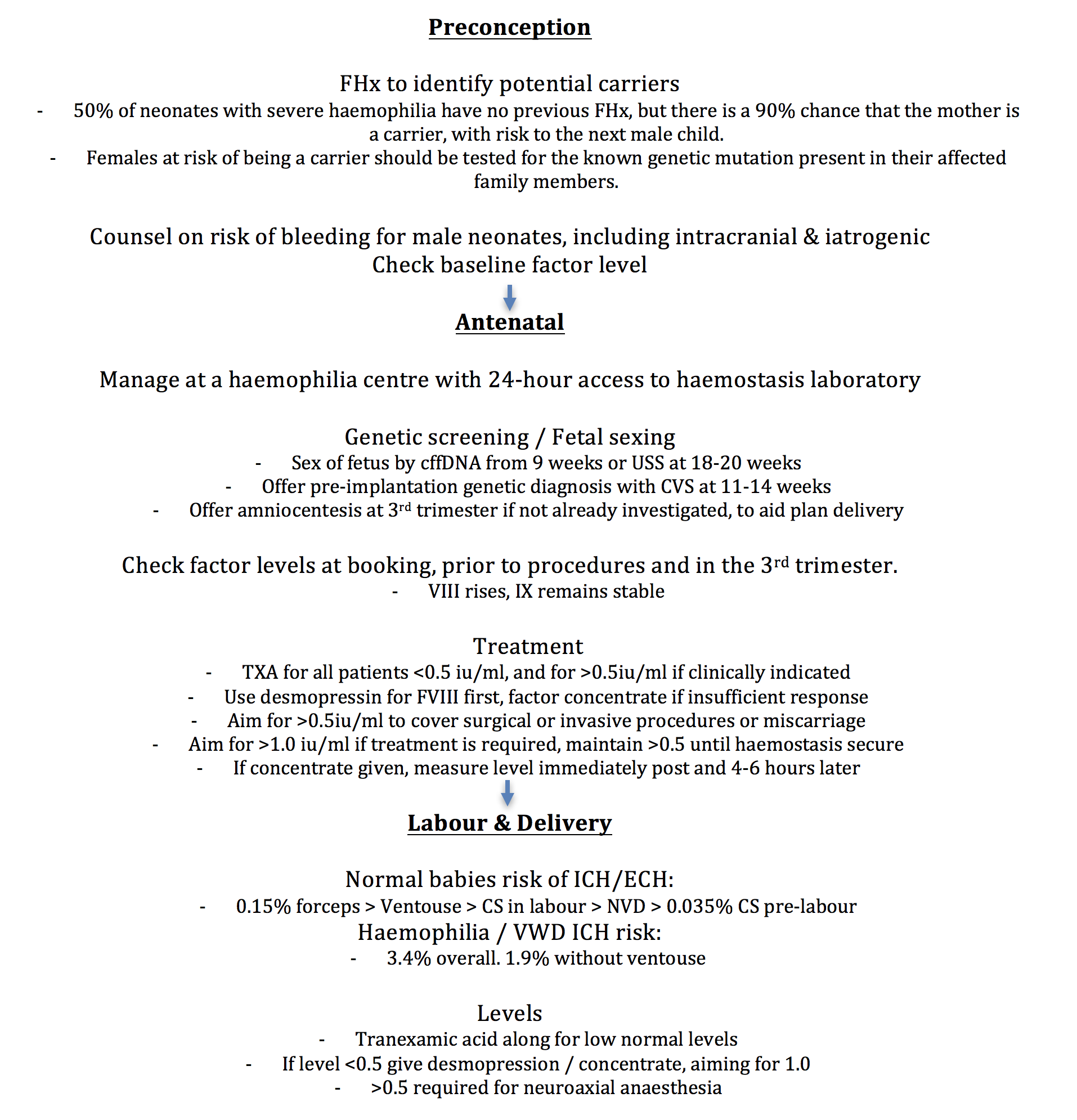

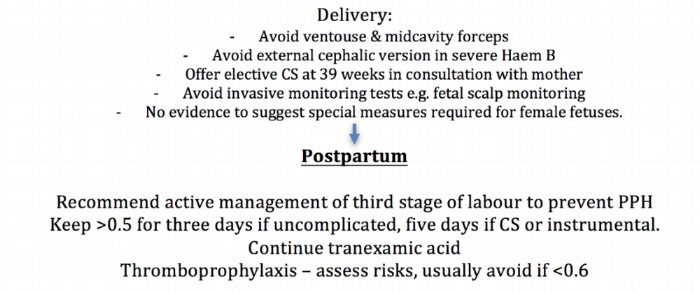

Haemophilia A/B Pregnancy Plan

haem 7.png
haem 8.png
haem 9.png



Haemostatic Changes in Pregnancy



Increases:     Fibrinogen, VWF, FVIII, FVII, FX

Stable:           FIX, FII, FV, Prot C (but acquired APCr occurs due to high FVIII)

Decreases:    FXIII, Protein S, (AT falls to low normal but remains within the reference range)



Causes of Consumptive Coagulopathy in Pregnancy



Placental abruption

Intrauterine fetal death

Pre-Eclampsia

Acute fatty liver of pregnancy

Amniotic fluid embolus



Amniotic fluid embolus triggers tissue factor --> a particularly aggressive consumptive coagulopathy which is further aggravated by dilutional effects of resuscitation.



Acquired Haemophilia A



Intro



EACH2 Registry – European Acquired Haemophilia Registry reported 482 patients in Blood 2012



Typically elderly patients affected

Associated with other autoimmune disorders

Commonly GI, urogenital, muscle and retroperitoneal bleeding (Haemarthosis is uncommon)



Delayed diagnosis is a significant problem

  • Rarity of presentation, usually to a general clinician unfamiliar with the diagnosis

  • Associated with anticoagulant use à further delay as bleeding blamed on the AC



10-20% relapse rate



Diagnostic Investigations



See inhibitor notes above



Treatment



1. Avoid Iatrogenic bleeding



Manual blood pressure measurements

Limit venesection, do not place cannula useless plan to use

Falls prevent measures



2. Bypassing Agent if Bleeding



NovoSeven (rFVIIa)              90 mcg/kg every 2 hours

FEIBA (FII, FXa)                    50-100 iu/kg every 6-12 hours



3.6% thrombotic events in all treated patients. 2.9% rFVIIa, 5.8% aPCC (EACH-2)



+/- Tranexamic acid

Alternatives to bypassing agents - Desmopressin, IVIg, Human FVIII + Immunoabsoprtion



3. Eradicate the Inhibitor



Start at same time as treating the bleed

Options:

  • Steroids

  • Steroids + Oral Cyclophosphamide

  • Rituximab

  • Calcineurin inhbitors, IVIg, Immune tolerance induction



Pregnancy-Associated Acquired Haemophilia A



1 in 350 million pregnancies

Presents in the 3 months postpartum

Longer time to remission

Consider side effects/breast feeding/ time commitments when selecting treatments.



questions



Question1: Give a differential diagnosis for a FVIII:C of 0.15 iu/ml

  • Mild haemophilia A

  • Haemophilia A on factor concentrate prophylaxis

  • Von Willebrand Disease

    • Type 1 or 2

  • Combined FV + FVIII deficiency

  • Discrepant 1-stage / 2-stage assays



Question 2a: A pregnant woman tells you she has a family history of ‘haemophilia’. How would you proceed?

  • Explore pedigree

    • Who is the index case and are they still alive / contactable?

  • Patient’s bleeding history (Score >7 significant in women)

  • Bloods

    • Check VIII, IX, XI, VWF & others based on ethnicity

    • Genetic sequencing – only takes 2 weeks



Question 2b: You find nothing from the above, what possibilities remain?

  • Rare coag disorder

  • Platelet function disorder

  • 3-5% of Haemophilia A families do not have a detectable mutation



Question 3a: In an asymptomatic woman, whose father has severe haemophila A and mother is normal, what is the risk that her daughter is a carrier of severe haemophilia A?

  • Superficially the daughter will be an obligate carrier, having taken X from father

  • But the quoted non-paternity rate in the UK is 1%



Question 3b: The daughter is a carrier (FVIII 0.68 iu/ml). She goes on to have two twin girls of her own. One twin has a FVIII of 0.69 iu/ml. What would you predict the levels to be in the other twin?

  • Could be the same

  • Or could be very low due to mirror image lyonisation between the twins



Question 4: In which situations can you be sure someone is an obligate carrier?

  • If they are a daughter of an affected mother

  • If they are the mother of two affected children

  • (not if they are the daughter of an affected father for reasons of non-paternity)
