Malaria, worms and leishmaniasis (BSH 2022, CDC website)

Preparing Films



Make 4 thick and 4 thin films --> 2 of each to go to reference lab unstained



Thick film

  • Geimsa or Field stain

  • Parasitaemia count made by 2 staff, from examination of 200 high power fields each



Thin film

  • Giemsa or Leishman stain

  • For species identification



Negative films should be repeated every 12-24 hours if clinical suspicion remains

malaria morphology summary


image bank



Image bank from the CDC

other tests



Immunochromatographic test (Rapid Diagnostic Test (RDT))

  • Detects malaria antigen

  • Confirmatory test only, must never replace microscopy (lots of detail in guideline)

  • Able to give species identity to falciparum and vivax

?Negative RDT in presence of intracellular red cell parasites - think babesiosis and send samples to reference laboratory for further investigation. CDC Babesiosis pages.

Nucleic-acid detection

  • Turnaround time 2-72 hours depending on method.

  • Cannot always distinguish current from past infection

  • PCR

    • 10x more sensitive than microscopy

    • Better at determining species in cases of mixed infection

  • LAMP

    • Methodoligically far simpler. Originally developed for use in the field.

Drug sensitivity testing

  • Research tool only at present



Quality assurance



Internal

Dual reporting of all slides

New stain batches tested on known vivax and ovale cases

External

NEQAS

Reference lab confirmation



Malaria Biology

Geographical distribution

Falciparum     – Global

Malariae         – Global

Ovale              – Sub-Saharan Africa

Vivax               – Rest of Africa

Knowlesi        – SE Asia

Life Cycle

  1. During a blood meal, malaria-infected female anopheles mosquitoes inoculate sporozoites into the human host.

  2. Sporozoites infect liver cells and mature into shizonts

  3. Liver shizonts mature then rupture to release merozoites

  4. Merozoites infect red cells and multiply asexually --> ring form immature trophozoite --> trophozoite --> shizonts --> again rupture (this time from red cells) releasing more merozoites. This is responsible for clinical manifestations of the disease

  5. Some parasites differentiate into a sexual stage (microgametocytes (male) and macrogametocytes (female)

  6. The gametocytes are ingested by mosquito at next meal. Microgametocytes penetrate macrogametocytes to generate a zygote. The zygote becomes motile and elongated (ookinete) and invade the gut wall of the mosquito.

  7. The now oocyst grows, ruptures and release sporozoites, which migrate to the salivary glands and the cycle repeats.



worms



Sheathed Worms



Wucheria bancrofti

Central Africa, Nile, Central/South America & Tropical Asia

Mosquito-borne

Clinical Picture

  • Lymphatic filariasis, but often asymptomatic for years

  • Pulmonary eosinophilia syndrome

  • Hydrocoeles



Brugia Malayi

South and SE Asia

Mosquito-borne

Clinical Picture

  • Lymphatic filariasis, but often asymptomatic for years

  • Pulmonary eosinophilia syndrome

  • Hydrocoeles



Loa Loa

West and Central Africa

Fly-borne

Syn. African Eye worm

Clinical Picture

  • Itchy calabar swellings

  • Eye worm

  • But often asymptomatic (More symptomatic if not a native of endemic area)



No Sheath Worms



Mansonella

Africa and tropical Americas

Midge-borne

Clinical Picture

  • Usually asymptomatic

  • Non-specific fever, angioedema, itch, arthralgia, headache

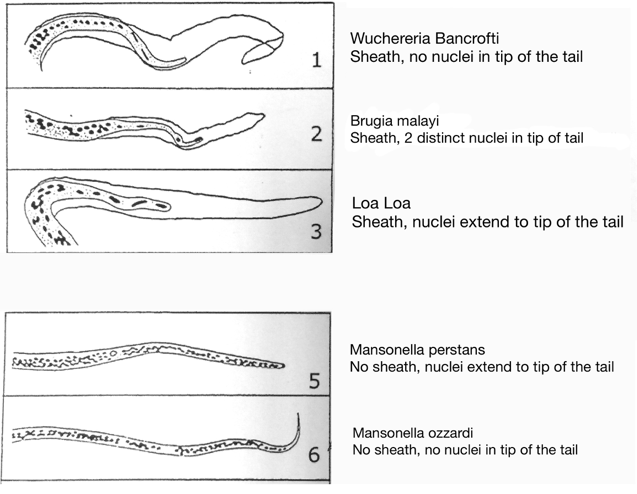

Worm Summary

Source: This is a paper chart in my local lab with no author given. Will of course amend if anyone recognises this.

Source: This is a paper chart in my local lab with no author given. Will of course amend if anyone recognises this.


Leishmaniasis



Tropics, Subtropics and Southern Europe

Sand fly-borne



Cutaneous

Skin sores

Often self-resolving but can take years


Visceral

Fever, weight loss, hepatosplenomegaly, pancytopenia

Often fatal if untreated

Tissue stage of larvae is called an amastigote

  • Often seen inside macrophages, should have a nucleus + rod-shaped kinetoplast


trypanosomiasis


african trypanosomiasis


Species

Trypanosoma Brucei Gambiense

Trypanosoma Brucei Rhodensiense

Morphology

Pleomorphic trypanosomes, 18-35um in length

Single flagellum extending from kinetoplast and running along outer margin of the membrane

Small dot-like parabasal body of the kinetoplast stains darkly

Cytoplasm is pale with granules

Early stage: long slender forms, often seen dividing

Late stage: intermediate and short forms, some with no flagellum


south american



Species

Trypanosoma Cruzi

Morphology

Usually C-shaped, 12-30um in length

Narrow membrane and free flagellum

Large round/oval dark-red kinetoplast at posterior end

Nucleus dark-red and centrally placed
